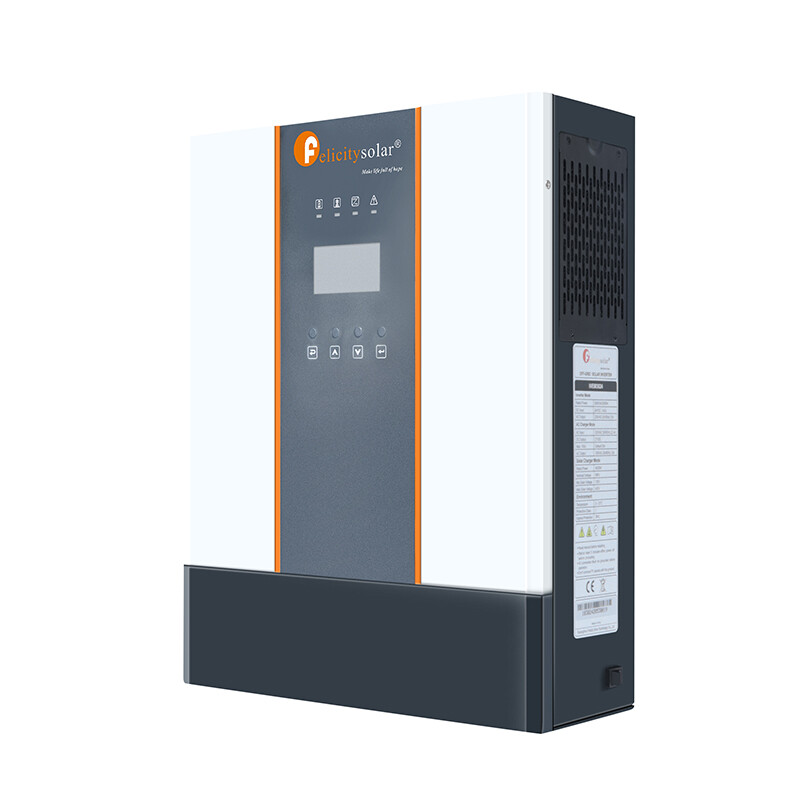

Inversor Aislada Híbrido 5000W Felicity IVEM-5kW

468 €
Disponible
Inversor Aislada Híbrido 5000W Felicity IVEM-5kW
Información del producto

1 x Inversor Aislada Híbrido 5000W 48V MPPT 100A

Ficha Técnica Inversor Aislada Híbrido IVEM-5kW 5000W

Con una potencia de salida de 5000W se caracteriza por estar preparado para trabajar en instalaciones aisladas con función de derivación (bypass function). Tiene la posibilidad de añadirle baterías de litio para almacenar el excedente de energía y consumirla en los momentos en los que los consumos son superiores a la producción fotovoltaica o en horas nocturnas.

Model
lvbdel RatedOutputPower(VA) 5000VA
Rated Output Power(W) 5000W
Nominal DC lnput Voltag 48V
Nominal lnput Voltage 230Vac
Max AC lnput Voltage 280Vac
Nominal Input Frequency 50Hz / 60Hz (Auto detection)
Efficiency (Line lvbde) >95% (Rated R load, battery full charged)
Pass Through Without Battery Yes
Utility Charge Mode Specifications
lnputVoltage Range 90-280Vac
Overcharge Protection Yes
Solar Charging & Utility Charging
Max. PV Open Circuit Voltage 500V
PV Voltage Working Range 120V-500V
Max. Input Power 6000W
Max. Solar Charging Current 100A
Max. Charging Current (PV+Grid) 100A
Max. Lnput Current 20A
Min. Startup Voltage 125V
Inverter Mode Specifications
Output Voltage Wave formCapable of Starting Electric Output S hortC ircuit Protection Pure sine wave
Nominal Output Voltage 230Vac±5%
Nominal Output Frequency (Hz) 50±0.3Hz/60Hz±0.3Hz (Adjustable)
Parallel capability Yes,up to 12 units
Peak Efficiency 93%
Over-Load Protection (S MPS load) 5s@≥150%load, 10s@105%-150%load
Surge Rating 2* rated power for 5s
Capable of Starting Electric Yes
Output Short Circuit Protection Yes
General Specification
Operating Temperature -0° C to 55° C
Range Storage Temperature -15° C to 60° C
NetWeight (KG) 11.2KG
Product Size (D*W*H) 415x320x129mm
Package Dimension (D*W”H) 514x419x222mm
