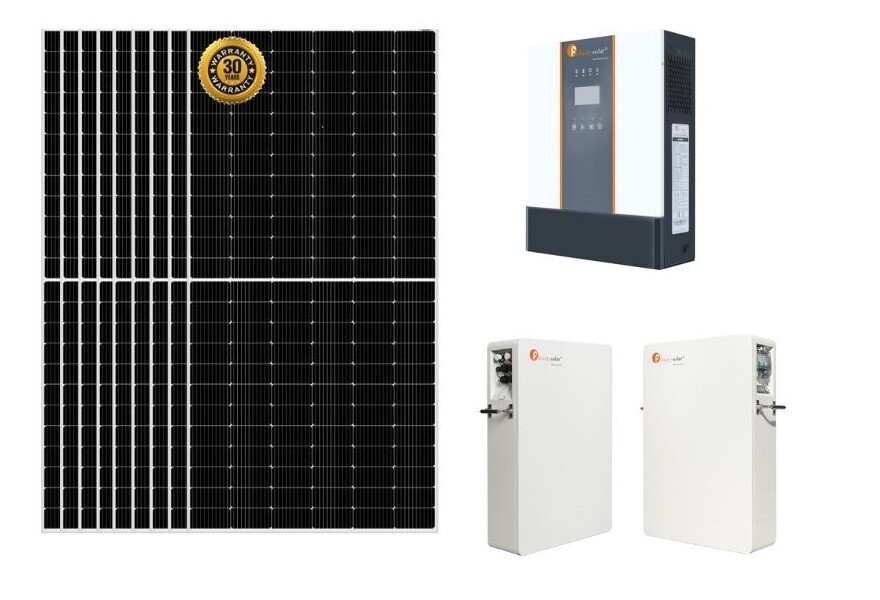

Kit Solar Aislada 5000W 48V – Inversor Aislada Híbrido + Batería LiFePO4 + TOPCon Panel Solar
Información del producto
1 x Inversor Aislada Híbrido 5000W 48V MPPT 100A
| Model | |
| lvbdel RatedOutputPower(VA) | 5000VA |
| Rated Output Power(W) | 5000W |
| Nominal DC lnput Voltag | 48V |
| Nominal lnput Voltage | 230Vac |
| Max AC lnput Voltage | 280Vac |
| Nominal Input Frequency | 50Hz / 60Hz (Auto detection) |
| Efficiency (Line lvbde) | >95% (Rated R load, battery full charged) |
| Pass Through Without Battery | Yes |
| Utility Charge Mode Specifications | |
| lnputVoltage Range | 90-280Vac |
| Overcharge Protection | Yes |
| Solar Charging & Utility Charging | |
| Max. PV Open Circuit Voltage | 500V |
| PV Voltage Working Range | 120V-500V |
| Max. Input Power | 6000W |
| Max. Solar Charging Current | 100A |
| Max. Charging Current (PV+Grid) | 100A |
| Max. Lnput Current | 20A |
| Min. Startup Voltage | 125V |
| Inverter Mode Specifications | |
| Output Voltage Wave formCapable of Starting Electric Output S hortC ircuit Protection | Pure sine wave |
| Nominal Output Voltage | 230Vac±5% |
| Nominal Output Frequency (Hz) | 50±0.3Hz/60Hz±0.3Hz (Adjustable) |
| Parallel capability | Yes,up to 12 units |
| Peak Efficiency | 93% |
| Over-Load Protection (S MPS load) | 5s@≥150%load, 10s@105%-150%load |
| Surge Rating | 2* rated power for 5s |
| Capable of Starting Electric | Yes |
| Output Short Circuit Protection | Yes |
| General Specification | |
| Operating Temperature | -0° C to 55° C |
| Range Storage Temperature | -15° C to 60° C |
| NetWeight (KG) | 11.2KG |
| Product Size (D*W*H) | 415x320x129mm |
| Package Dimension (D*W”H) | 514x419x222mm |
1 x Batería Litio LiFePO4 51.2V 100Ah
| Total Energy | 5.12kWh |
| Usable Energy | 4.6kWh |
| Capacity | 100Ah |
| NominaI Voltage | 51.2V |
| Voltage Range | 48-57.6V |
| Max Power | 2.5kW |
| Peak Power | 5.0kW |
| Scalable | 1-12 in Parallel |
| Communication Enclosure | CAN, RS485 |
| Protection Rating | Ip65 |
| Working Temperature Range | -10° to 50° C |
| Cycle Life | 6,000 Cycle@80% DOD / 25° C I 0.5C, 60%EOL |
| Warranty | 10 years |
| Certification | IEC62619, UL1973, UN38.3, CE |
| Dimension | 650*440*150MM |
| Weight | 48KG |
9 x AmericanSolar 560W TOPCon N-Type
El Panel Solar AmericanSolar 560W TOPCon N-Type es un panel de gran potencia del fabricante AmeriSolar. Pertenece a la gama AS-7M144-HC que ofrece la última tecnología de TOPCon N-Type con unas características técnicas muy avanzadas. Una de las más destacadas son sus células solares de alta potencia y eficcencian para producción superior y un rendimiento térmico mucho más bueno.
- Eficiencia del módulo: 21.67%
- Potencia Pico (PMAX): 560W
- Voltaje a máxima potencia (VMPP): 42,2V
- Intensidad a máxima potencia (IMPP): 13,28A
- Voltaje en circuito abierto (VOC): 50,04V
- Intensidad en cortocircuito (ISC): 14,04A
Certificado de TÜV SÜD IEC61730 IEC61215 y MCS005 MCS010
